Experimental ProxImaL intermediate representation

Note

This feature is currently work in progress.

The proximal.experimental namespace introduces a new internal representation (IR) for describing optimization problems in ProxImaL. Loosely mirroring the LLVM and Halide projects, the IR provides a unified foundation for problem rewriting, problem formulation rendering, and code generation. It replaces a number of common code paths previously scattered across proximal.* with a single, consistent architecture.

The IR is implemented using Python dataclass structures (Python 3.11+). All problem-level transformations, including grouping, absorption, splitting, and diagonal scaling, operate exclusively on these IR objects should the end user chooses to adopt the new ProxImaL syntaxes.

Image distortion models and the corresponding image reconstruction problem formulation can be directly composed with the IR objects, albeit with a very verbose code. To aid the transition, a minimal parser is available at px.experimental.frontend.parser. This “easy mode” allows users to write simple optimization problems using a lightweight external domain-specific language (DSL) similar to the original language syntax at proximal.prox_fns.*, and proximal.lin_ops.*.

Quick start

The following example (from examples/test_proximal_lite.py) shows how to define a problem using the experimental frontend and apply the built-in rewriting pipeline:

problem = parse(
    """
sum_squares(conv(k, u) - b) +
1.0e-5 * group_norm(grad(u)) +
1.0e-3 * sum_squares(grad(u)) +
nonneg(u)
""",
    variable_dims=dims,
    const_buffers={"b": np.ones(out_dims),
                   "k": np.ones((N, N), order="F", dtype=np.float32) / (N*N)},
)
print("Before:\n", problem)

optimized_problem = scale(split(group(absorb(problem))))
print("After:\n", optimized_problem)

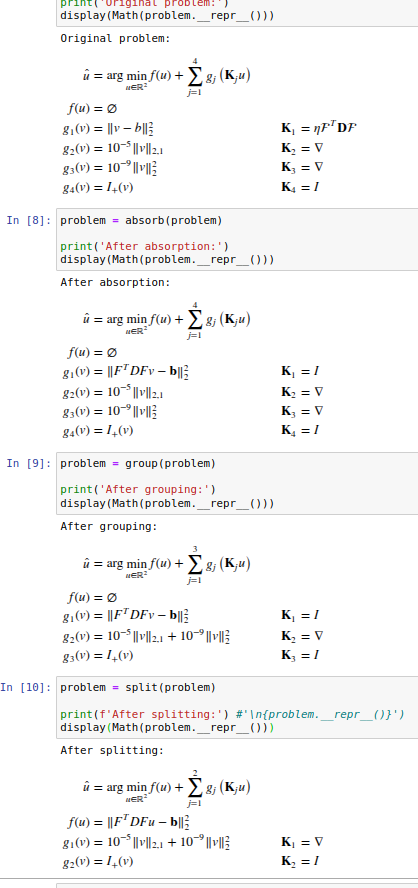

Visualization of the ProxImal-IR

_images/proximal-ir-jupyter.png

Screenshot of the LaTeX Math equations for each problem rewriting step.

Rationale

The experimental IR addresses several limitations in the previous design:

  • Problem rewriting behavior is now predictable and uniformly defined.

  • Grouping, absorption, and scaling logic are implemented in single, consolidated modules.

  • Visualization uses symbolic LaTeX rendering for clearer inspection of mathematical expression, step-by-step from absorption to splitting and scaling.

  • The IR directly supports future code-generation targets, including Halide and PyCUDA.

Warning

Advanced problem formulations, e.g. multi-channel image deconvolution and/or poisson deconvolution, are work in progress.

The new IR simplifies inspection of intermediate problem forms, which is especially useful when tuning deep signal distortion pipelines.

Comparison with the previous architecture

The following table summarizes major differences between the legacy system (proximal.*) and the experimental IR:

Feature

Previous System (proximal.*)

Experimental IR (proximal.experimental.*)

Stability

✅ Stable

Experimental; API may change

Typical usage

Academic benchmarking

✅ Code generation and deployment on embedded hardware

Visualization

Graph-based operator DAG

✅ LaTeX equation rendering

Grouping logic

Requires explicit, carefully structured user code

✅ Automatic grouping via IR hashing

Absorption rules

Distributed across multiple algorithm modules

✅ Centralized in optimize.absorb

Diagonal scaling

Spread across several algorithm files

✅ Centralized in optimize.scale

Halide/PyCUDA support

✅ Working implementations for PyCUDA, Numpy, Numexpr, and Halide.

Unstable; Hybrid Halide & Numpy for simulation; pure Halide output for baremetal targets.

Extendability

✅ Easy to add new operators and prox functions

Experimental; custom ops become black-box IR nodes

Planned development roadmap

The following features are planned or in progress:

Component

Status

Notes

Numpy solver backend

To be implemented

Will utilize IR for execution

PyCUDA backend (operator graph)

Planned

IR representation may remove the need for explicit graph building

PyCUDA kernel generation

Planned

Likely under px.experimental.codegen.pycuda.*

Halide code generation

Supported experimentally

Uses IR as the canonical input

Custom linear/prox operators

Limited support

IR will treat unknown operators as black-box nodes

The experimental IR provides the foundation for future compilation targets, including pure Halide pipelines and optimized embedded-device execution.
